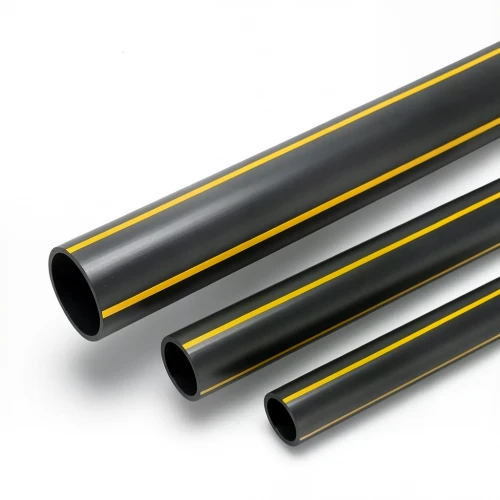

HDPE Plastic Pipe PN 4.8 Bar [PE 80] OD 500 mm Thickness 28.4 mm Color Black with Yellow Stripes | Almona Factory
(28 Product Views)
Product description
This HDPE pipe, manufactured by Al-Mona Factory to ISO 4437, is engineered for reliable performance in Qatar's demanding environment. Made from high-density polyethylene (PE 80), it offers excellent resistance to corrosion, high temperatures, and pressure, ensuring long-term durability in both buried and above-ground installations.
With an outer diameter of 500 mm and a wall thickness of 28.4 mm, this pipe is designed for high-capacity gas distribution systems. Its SDR 17.6 rating and 4.8 bar pressure capacity make it suitable for a wide range of industrial and municipal applications across Doha, Al Rayyan, and Al Wakrah.
Key Features
- Material grade: PE 80 (MRS 8 MPa, design stress 4 MPa, safety factor C=2)
- Pressure rating: 4.8 bar (SDR 17.6)
- Outer diameter: 500 mm; wall thickness: 28.4 mm
- Weight: 42.12 kg per meter
- Color: black with yellow stripes for easy identification
- Standard length: 12 meters (custom lengths available on request)
- Complies with ISO 4437 for gas supply networks
Built to withstand Qatar's harsh climate and rigorous construction standards, this HDPE pipe ensures safe and efficient gas transmission with minimal maintenance. Its lightweight yet strong construction simplifies handling and installation, reducing project timelines for contractors and developers throughout the country.
