HDPE Plastic Coil Pipe Working Pressure 15.9 Bar [PE 63] Outer Diameter 140 mm SDR 7.4 Color Black | Almona Company

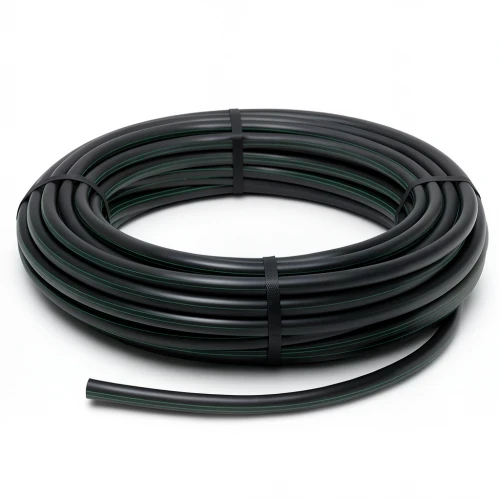

This HDPE coil pipe from Al-Mona Company is a robust solution for water conveyance in Qatar’s demanding environment. Manufactured from high-density polyethylene (PE 63) and rated for a working pressure of 15.9 bar, it delivers reliable performance in high-pressure water networks, irrigation systems, and industrial applications.

Thanks to its superior resistance to corrosion, abrasion, and external factors, this pipe ensures long service life with minimal maintenance – up to 50 years of trouble-free operation. Its flexibility and coil format simplify handling and installation, reducing the need for fittings and joints, which is especially beneficial for projects across Doha, Al Rayyan, and Al Wakrah.

Key Features

• Outside diameter: 140 mm
• Wall thickness: 19.2 mm
• Weight: 7.25 kg/m
• Standard dimension ratio (SDR): 7.4
• Working pressure: 15.9 bar
• Pipe series (S): 3.2
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Available in coils: 100, 200, 300 meters (up to 1500 m) for sizes 16–32 mm; 100-meter coils for sizes 40–160 mm
• Manufactured to DIN 8074/8075
