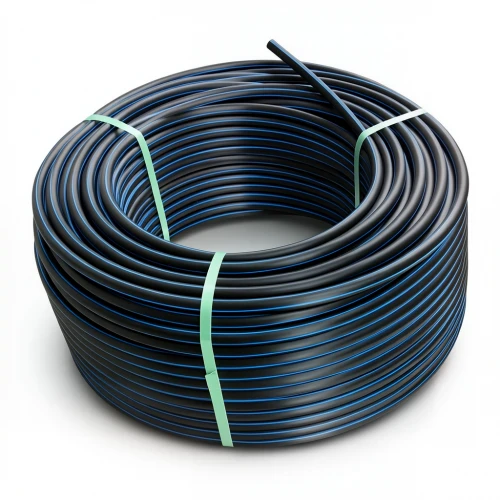

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] OD 50 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Al Mona Factory in compliance with DIN 8074/8075, are engineered for efficient and durable water transportation. Made from high-density polyethylene (PE 100), they deliver outstanding performance in demanding conditions, making them a reliable choice for water networks across Qatar, from Doha to Al Wakrah.

With a pressure rating of 9.9 bar and an outside diameter of 50 mm, these pipes are built to handle high-pressure applications with ease. Their SDR 13.6 rating and 3.7 mm wall thickness ensure structural integrity, while the material's minimum required strength (MRS) of 10 MPa guarantees long-term reliability. Designed for a maintenance-free service life of 50 years, they offer exceptional value for infrastructure projects.

These pipes provide superior resistance to UV radiation, chemical corrosion (pH range 2-12), and seismic activity, thanks to their flexibility and strong welded joints. This makes them ideal for Qatar's harsh climate and demanding construction standards.

Key Features

• Material grade: PE 100 (high-density polyethylene)
• Pressure rating: 9.9 bar
• Outside diameter: 50 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Wall thickness: 3.7 mm
• Weight: 0.555 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black with blue stripes
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)

Ideal for water supply networks, irrigation systems, and industrial applications in Qatar, these pipes combine flexibility, durability, and ease of installation, ensuring efficient performance in any project.
