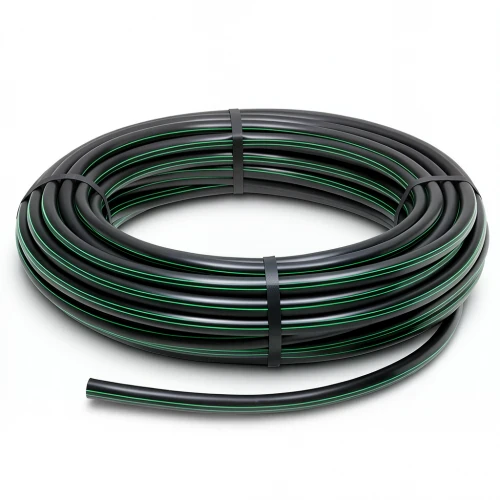

HDPE Plastic Coil Pipe PN 9.8 Bar [PE 63] OD 32 mm SDR 9 Color Black with Green Stripes | Almona Factory

Almona Factory presents this HDPE plastic coil pipe, a reliable solution for water transportation networks across Qatar. Manufactured to DIN 8074/8075 standards, this pipe combines high-density polyethylene (PE 63) with robust engineering to deliver exceptional performance in demanding conditions.

Designed to withstand high water pressure, this pipe ensures a secure and efficient flow, making it suitable for municipal water supply, irrigation, and industrial applications in Doha, Al Rayyan, and Al Wakrah. Its flexibility simplifies installation, especially in challenging terrains, and its resistance to UV radiation and chemical corrosion (pH 2-12) ensures long-term reliability even under Qatar's harsh climate.

Key Features

• Outside diameter: 32 mm
• Pressure rating: 9.8 bar (PN 9.8)
• Standard Dimension Ratio: SDR 9
• Material grade: PE 63 (MRS 6.3 MPa)
• Wall thickness: 3.6 mm
• Weight: 0.327 kg/m
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available in coil lengths: 100m, 200m, 300m up to 1500m (for 16-32 mm sizes); 100m coils for 40-160 mm sizes

With a maintenance-free lifespan of 50 years and superior resistance to seismic activity, this HDPE pipe is a smart investment for sustainable water infrastructure in Qatar. Choose Almona Factory for quality you can trust.
