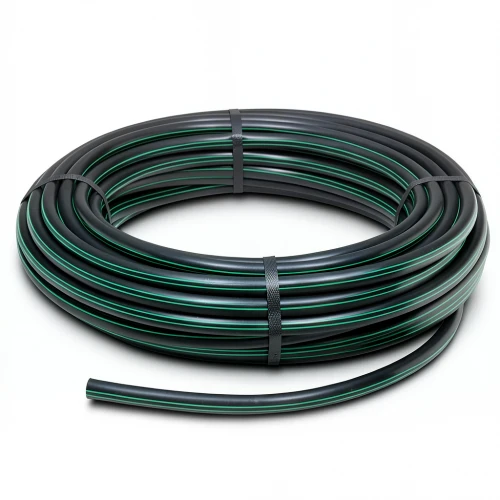

HDPE Plastic Coil Pipe PN 9.8 Bar [PE 63] OD 16 mm SDR 9 Color Black with Green Stripes | Almona Factory
(6 Product Views)
Product description
Our HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is the reliable choice for water distribution networks across Qatar. Crafted from high-density polyethylene, this pipe delivers exceptional strength and longevity, making it ideal for both residential and commercial projects in Doha, Al Rayyan, and Al Wakrah.
Engineered to withstand high pressures and harsh conditions, this pipe offers a maintenance-free service life of up to 50 years. Its flexibility ensures easy installation, even in tight spaces, while its resistance to UV radiation and chemical corrosion (pH 2โ12) guarantees performance in Qatar's intense climate and soil conditions.
Key Features
- Outside diameter: 16 mm
- Standard dimension ratio (SDR): 9
- Pipe series (S): 4
- Material grade: PE 63
- Pressure rating: 9.8 bar
- Wall thickness: 1.8 mm
- Minimum required strength (MRS): 6.3 MPa
- Weight: 0.084 kg/m
- Design safety factor: C = 1.6 (ฯs = 3.94 MPa)
- Color: Black with green stripes
- Length: Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16โ32 mm); 100-meter coils for sizes 40โ160 mm
Whether for irrigation, potable water, or industrial applications, this HDPE pipe offers the durability and reliability required for long-term performance in Qatar's infrastructure projects.
