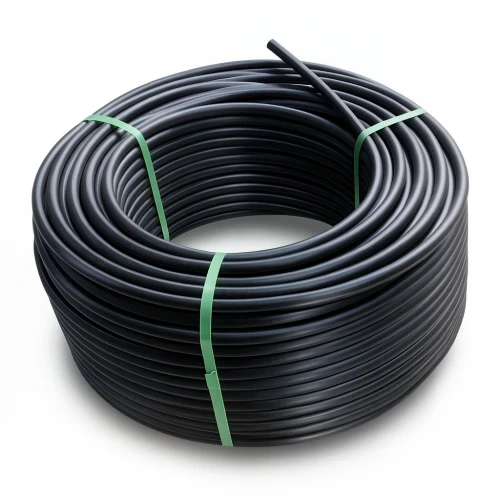

HDPE Plastic Coil Pipe PN 8 Bar [PE 80] OD 160 mm SDR 17 Color Black | Almona Factory

Al-Mona Factory presents a premium range of HDPE (High-Density Polyethylene) pipe coils, engineered for reliable water transportation in Qatar's demanding environment. These pipes are manufactured in accordance with ISO 4427-2, ensuring international quality standards. The PE80 grade material delivers excellent strength and durability, capable of withstanding high pressures and temperatures while resisting corrosion and chemical attack.

With an outer diameter of 160 mm and a Standard Dimension Ratio (SDR) of 17, these pipes offer a robust wall thickness of 9.5 mm, providing a design safety factor of C=1.25 and a minimum required strength (MRS) of 8 MPa. The design stress of 6.4 MPa ensures long-term performance in both potable water and irrigation applications.

Ideal for projects across Qatar, from Doha's urban infrastructure to Al Rayyan and Al Wakrah's residential developments, these HDPE coils are lightweight and flexible, making them easy to transport and install even in confined spaces. The black color provides UV resistance for outdoor storage and installation.

Key Features

• Outer diameter: 160 mm
• Standard Dimension Ratio: SDR 17
• Material grade: PE80
• Pressure rating: 8 bar (PN 8)
• Wall thickness: 9.5 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)
• Manufactured in accordance with ISO 4427-2

These HDPE coils are suitable for a wide range of applications, including water supply networks, irrigation systems, and industrial fluid transport. Their flexibility simplifies installation, reducing labor and equipment costs. Choose Al-Mona Factory for dependable piping solutions that meet the highest standards of quality and performance in Qatar.
