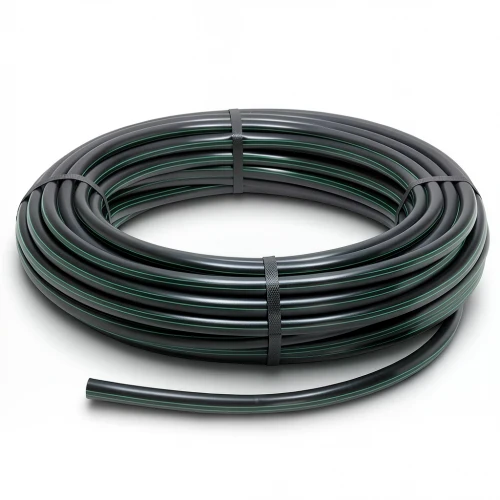

HDPE Plastic Coil Pipe PN 6.2 Bar [PE 63] OD 140 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE plastic coil pipes, engineered for reliable water transportation in Qatar's demanding infrastructure projects. Manufactured in compliance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 63), offering outstanding durability and long-term performance.

These pipes are designed to withstand high water pressures, making them a trusted choice for municipal water networks, agricultural irrigation systems, and industrial drainage applications throughout Doha, Al Rayyan, and Al Wakrah. With a minimum required strength of 6.3 MPa and a design safety factor of 1.6, they ensure safe and efficient operation under varying conditions.

One of the standout features is their exceptional longevity—up to 50 years of maintenance-free service. The pipes are also highly resistant to UV radiation, chemical corrosion (pH range 2–12), and seismic activity, thanks to their flexibility and robust welded joints. This makes them ideal for Qatar's hot climate and dynamic construction landscape.

Available in coil lengths from 100 to 1500 meters (for sizes 16–32 mm) and 100-meter coils for sizes 40–160 mm, these pipes offer flexibility and ease of installation, reducing joints and potential leak points.

Key Specifications

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Pressure rating: 6.2 bar
• Wall thickness: 10.3 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 4.22 kg/m
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
