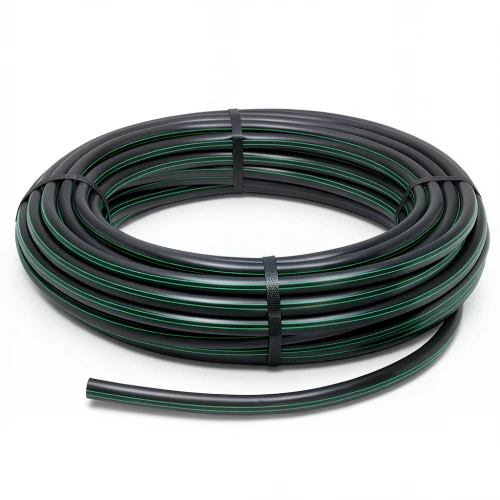

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 160 mm SDR 22 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, produced by Al Mona Factory in accordance with DIN 8074/8075, is a superior solution for water transportation networks across Qatar. Crafted from high-density polyethylene (PE 80), it delivers outstanding durability and performance, making it ideal for both potable water distribution and industrial applications in Doha, Al Rayyan, and Al Wakrah.

The pipe is engineered to withstand high water pressure (PN 6 bar) and offers a maintenance-free service life of up to 50 years. Its flexibility provides excellent resistance to seismic activity, a crucial feature in a region where structural resilience is paramount. Additionally, the pipe offers superior protection against UV radiation and chemical corrosion, withstanding a wide pH range (2 to 12), ensuring long-term reliability in Qatar's harsh climate.

Key Features

• Outside diameter: 160 mm
• Standard dimension ratio: SDR 22
• Pipe series (S): 10.5
• Material grade: PE 80
• Pressure rating: 6 bar
• Wall thickness: 7.3 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 3.54 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100-meter lengths (for sizes 40 mm to 160 mm)

Ideal for water supply networks, irrigation systems, and industrial piping, this HDPE coil pipe meets the rigorous standards required for infrastructure projects in Qatar, ensuring efficient and secure fluid transport.
