![HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 110 mm SDR 22 Color Black with Green Stripes | Almona Factory](https://d3usa7hclic8la.cloudfront.net/455692/conversions/hdpe-plastic-coil-pipe-pn-6-bar-pe-80-od-110-mm-sdr-22-color-black-with-green-stripes-almona-factory-qa-size_500_500.webp)

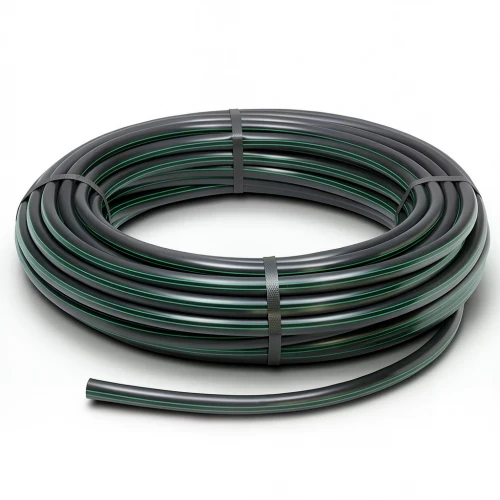

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 110 mm SDR 22 Color Black with Green Stripes | Almona Factory
(28 Product Views)
High-density polyethylene coil pipe rated PN 6 bar, PE 80, with a 110 mm outer diameter, ideal for irrigation and water networks in Qatar. Produced by Almona Factory.
in stock
Product description
This HDPE coil pipe from Almona Factory is engineered for reliable water transportation in demanding environments, including the harsh Qatari climate. Manufactured to DIN 8074/8075, it offers exceptional durability and long-term performance.
Key Features
- Material grade PE 80 with a minimum required strength (MRS) of 8 MPa
- Pressure rating: 6 bar (PN 6)
- Outside diameter: 110 mm; wall thickness: 6.3 mm
- Standard dimension ratio (SDR) 22; pipe series (S) 10.5
- Design safety factor C=1.25
- Black with green stripes for easy identification
- Available in coils of 100 meters (for sizes 40-160 mm) and up to 1500 meters (for smaller sizes)
- Weight: 2.08 kg/m
- Resistant to UV radiation, chemical corrosion (pH 2-12), and seismic stress
- Maintenance-free lifespan of up to 50 years
Applications in Qatar
Ideal for irrigation systems in Doha, Al Rayyan, and Al Wakrah, as well as for potable water distribution and industrial piping. Its flexibility and corrosion resistance make it suitable for underground installations and areas prone to ground movement.
