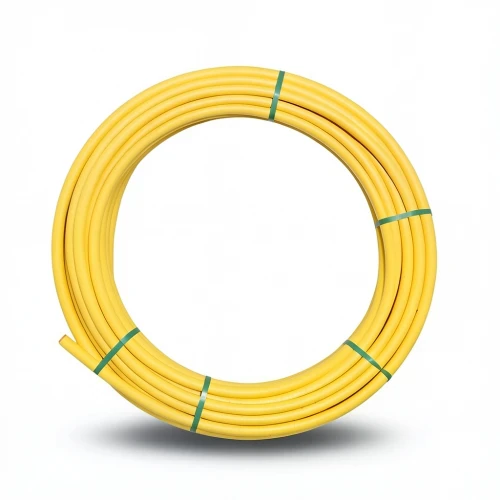

HDPE Plastic Coil Pipe PN 4.8 Bar [PE 80] Outside Diameter 110 mm Thickness 6.3 mm Color Yellow | Almona Factory

These HDPE coil pipes, manufactured by Al-Mona Factory, are engineered to meet the rigorous demands of modern infrastructure in Qatar. Produced in accordance with ISO 4437, they are specifically designed for gas supply networks, offering exceptional durability and long-term performance in the challenging local climate.

Made from high-density polyethylene (PE 80), these pipes deliver outstanding resistance to corrosion, chemicals, and UV radiation, ensuring reliable service even under intense sun exposure. The material's inherent toughness allows them to withstand high temperatures and pressures, making them a trusted choice for both above-ground and buried installations.

Key Features

• Outside diameter: 110 mm
• Standard dimension ratio: SDR 17.6
• Material grade: PE 80
• Pressure rating: 4.8 bar
• Wall thickness: 6.3 mm
• Material weight: 1.09 kg/m
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 5 MPa
• Design safety factor: C = 2
• Color: Yellow
• Available in coils of 100, 200, 300, and up to 1500 meters (for sizes 16 mm to 32 mm)
• 100-meter coils for sizes 40 mm to 160 mm

These pipes are widely used in Qatar for gas distribution networks, water supply lines, and industrial applications. Their flexibility and coil form facilitate quick installation, especially in projects across Doha, Al Rayyan, and Al Wakrah, reducing the need for joints and minimizing potential leak points.

Compliant with international standards and backed by Al-Mona Factory's commitment to quality, these HDPE pipes offer a cost-effective and long-lasting solution for contractors and developers operating in Qatar's growing infrastructure sector.
