HDPE Plastic Coil Pipe PN 4.8 Bar [PE 80] OD 160 mm Thickness 9.1 mm Color Yellow | Almona Factory

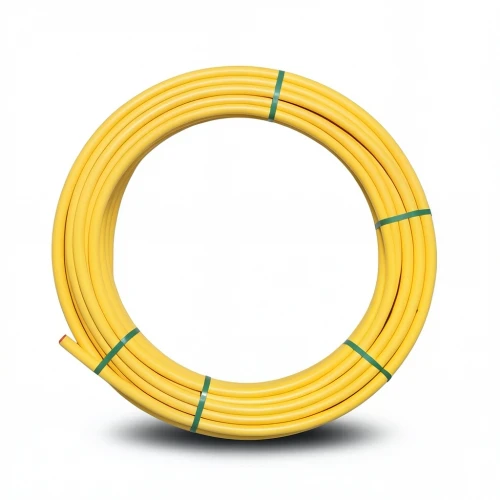

This HDPE coil pipe from Al-Mona Factory is engineered for reliable performance in gas supply networks across Qatar. Manufactured to ISO 4437, it combines high-density polyethylene's inherent strength with excellent resistance to corrosion, temperature fluctuations, and ground pressures—making it a trusted choice for Doha's infrastructure projects and Al Rayyan's residential developments.

With an outside diameter of 160 mm and a wall thickness of 9.1 mm, this pipe offers a pressure rating of 4.8 bar (SDR 17.6). The PE80 grade ensures long-term durability, while the yellow color provides easy identification in utility installations. Its coil format simplifies handling and installation, reducing joint requirements and labor time on site.

Key Features

• Outside diameter: 160 mm
• Wall thickness: 9.1 mm
• Pressure rating: 4.8 bar (SDR 17.6)
• Material grade: PE 80 (MRS 10 MPa, design stress 5 MPa, safety factor C=2)
• Weight: 4.38 kg/m
• Color: yellow
• Length: available in 100-meter coils (for sizes 40–160 mm); for smaller sizes, coils from 100 up to 1500 meters
• Manufactured according to ISO 4437

Ideal for gas distribution networks, this pipe withstands harsh desert conditions and is suitable for both above-ground and buried installations. Its flexibility and corrosion resistance make it a cost-effective, long-lasting solution for Qatar's growing construction and industrial sectors.
