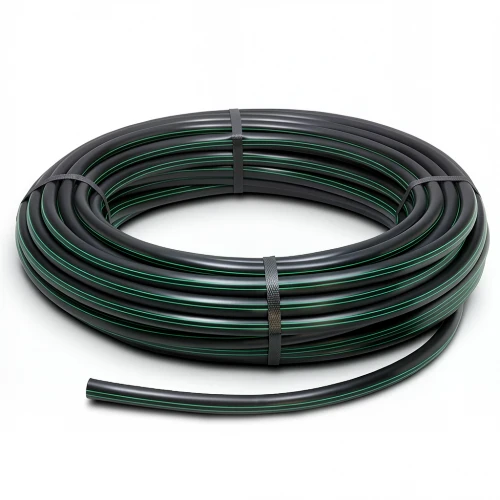

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] Outside Diameter 90 mm SDR 26 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a reliable solution for water transportation networks in Qatar. Manufactured to DIN 8074/8075 standards, this pipe is crafted from high-density polyethylene (PE 63) to deliver exceptional durability and performance.

Engineered to withstand high water pressure, this HDPE pipe is perfect for demanding applications across Doha, Al Rayyan, and Al Wakrah. With a design life of 50 years and zero maintenance requirements, it offers long-term value for infrastructure projects.

Its superior resistance to UV radiation, chemical corrosion (pH 2-12), and earthquakes—thanks to its flexibility and robust welded joints—makes it a dependable choice for Qatar's harsh climate and seismic conditions.

Key Specifications

• Outside Diameter: 90 mm
• Standard Dimension Ratio (SDR): 26
• Pipe Series (S): 12.5
• Material Grade: PE 63
• Pressure Rating: 4 bar
• Wall Thickness: 3.5 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Material Weight: 0.978 kg/m
• Design Safety Factor: C=1.25, σs=5.04 MPa
• Color: Black with green stripes
• Length: Coils from 100 to 1500 meters (for sizes 16-32 mm), 100-meter coils for sizes 40-160 mm

Available in various sizes to meet project requirements, this pipe ensures efficient water transmission with minimal friction losses. Choose Almona Factory for quality you can trust in Qatar's building and industrial sectors.
