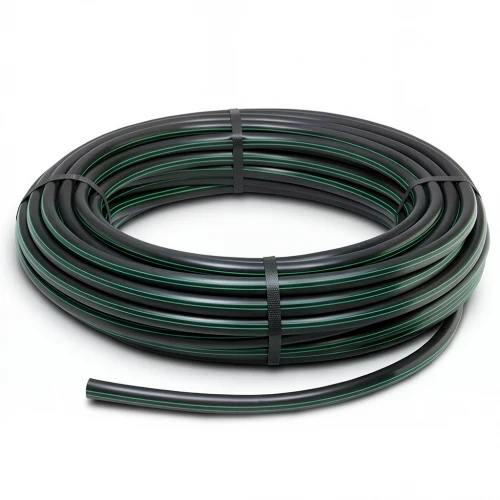

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] OD 50 mm SDR 26 Color Black with Green Stripes | Almona Factory

Almona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for efficient and durable water transportation in Qatar's demanding environments. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional performance and longevity.

Built to withstand high water pressure, these pipes are ideal for pressurized water networks common in Doha, Al Rayyan, and Al Wakrah. With a 50-year maintenance-free lifespan, they offer a long-term solution for infrastructure projects. Their superior resistance to UV radiation and chemical corrosion (pH range 2 to 12) ensures reliability in Qatar's harsh climate and varied soil conditions. Additionally, the flexibility of the pipe and its welded joints provides excellent earthquake resistance, adding an extra layer of safety.

Key Features

• Outside diameter: 50 mm
• Standard dimension ratio (SDR): 26
• Pipe series (S): 12.5
• Material grade: PE 63
• Pressure rating: 4 bar
• Wall thickness: 2 mm
• Minimum required strength (MRS): 6.3 MPa
• Material weight: 0.314 kg/m
• Design safety factor: C=1.25, σs=5.04 MPa
• Color: Black with green stripes
• Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

These pipes are suitable for a wide range of applications, including agricultural irrigation, landscaping, and municipal water supply projects across Qatar. Choose Almona Factory for quality and performance that meets your project needs.
