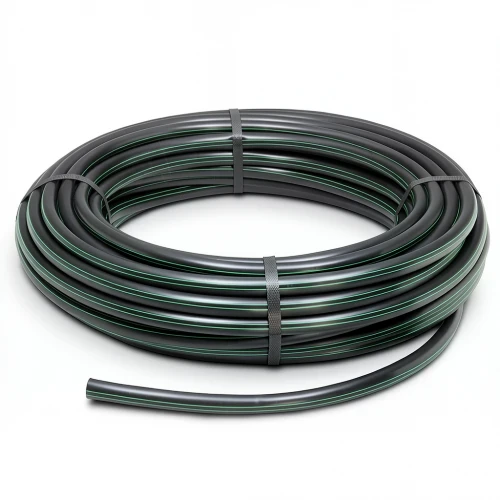

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] OD 160 mm SDR 26 Color Black with Green Stripes | Almona Factory

Almona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered to meet the rigorous demands of water transportation networks across Qatar. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and performance, making them a trusted choice for infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

These HDPE pipes are designed to withstand high water pressure, ensuring reliable operation in networks subjected to demanding conditions. With a maintenance-free service life of 50 years, they offer a long-term solution for both municipal and industrial applications. Their superior resistance to UV exposure and chemical corrosion (pH range 2-12) makes them ideal for Qatar's harsh climate and varied water qualities.

Thanks to the high flexibility of the pipe and its welded joints, these pipes exhibit excellent earthquake resistance, adding an extra layer of safety to your installations. The ease and speed of installation reduce project timelines and labor costs, as no sophisticated equipment is required.

Key Specifications

• Outside Diameter: 160 mm
• Standard Dimension Ratio: SDR 26
• Pipe Series (S): 12.5
• Material Grade: PE 63
• Pressure Rating: 4 bar
• Wall Thickness: 6.2 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Design Safety Factor: C=1.25 (σs = 5.04 MPa)
• Weight: 3.04 kg/m
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters, up to 1500 meters (for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Whether for potable water distribution, irrigation, or industrial fluid transport, these HDPE coil pipes offer a robust and cost-effective solution. Choose Almona Factory for high-quality piping that stands the test of time.
