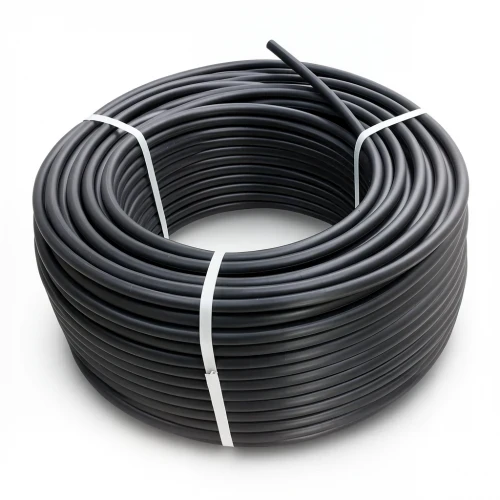

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 160 mm SDR 33 Color Black | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for water transportation networks across Qatar. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 100) to deliver unmatched durability and performance in demanding conditions—from Doha's urban infrastructure to Al Rayyan's expanding developments.

Key Features

• Rated pressure: 4 bar (PN 4)
• Outside diameter: 160 mm
• Standard dimension ratio: SDR 33
• Pipe series (S): 16
• Wall thickness: 4.9 mm
• Material grade: PE 100
• Minimum required strength (MRS): 10 MPa
• Weight: 2.45 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Built for Qatar's Climate

These pipes withstand prolonged UV exposure and extreme temperatures, making them perfect for above-ground and buried installations across Qatar. Their flexibility provides excellent resistance to earthquakes and ground movement—a vital advantage in a region with dynamic construction activity.

Applications

Ideal for potable water supply lines, irrigation systems, and industrial fluid transport. The pipes resist chemical corrosion across a pH range of 2 to 12, ensuring longevity even with aggressive fluids. With a maintenance-free service life of 50 years, they offer a reliable, cost-effective solution for projects in Al Wakrah, Al Khor, and beyond.

Quality Assurance

Produced under strict quality controls by Almona Factory, these pipes meet international standards, ensuring consistent performance and peace of mind for engineers and contractors throughout Qatar.
