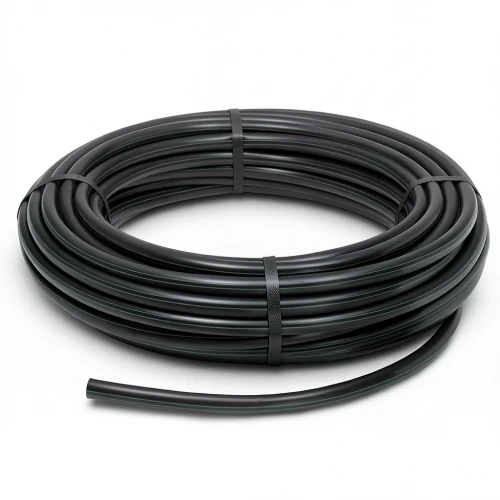

HDPE Plastic Coil Pipe PN 3.9 Bar [PE 63] Outside Diameter 75 mm SDR 21 Color Black | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable and efficient liquid conveyance, making it an ideal choice for irrigation networks across Qatar. Manufactured from high-density polyethylene (PE 63), it offers exceptional durability and long-term performance, with a design life exceeding 50 years and minimal maintenance requirements.

Designed to withstand high operating pressures, this pipe is well-suited for water distribution systems that face demanding conditions. Its black color provides natural UV resistance, while the smooth inner surface reduces friction and energy consumption. The pipe is produced in coils of various lengths to accommodate projects of different scales, from residential landscaping to large agricultural schemes.

Key Features

• Outside diameter: 75 mm
• Wall thickness: 3.6 mm
• Pressure rating: 3.9 bar (PN 3.9)
• Standard dimensional ratio: SDR 21
• Pipe series (S): 10
• Material grade: PE 63
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Ideal for use in Qatar's agricultural and landscaping sectors, this pipe delivers dependable performance in harsh desert climates, ensuring efficient water delivery for irrigation systems, municipal networks, and industrial applications.
