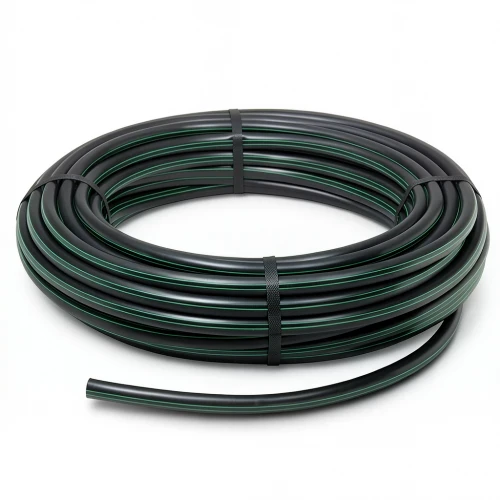

HDPE Plastic Coil Pipe PN 3.9 Bar [PE 63] OD 140 mm SDR 21 Color Black with Green Stripes | Almona Factory

Our HDPE plastic coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are the preferred solution for water transportation networks across Qatar. Made from high-density polyethylene (PE63), these pipes deliver outstanding performance and reliability, even under the demanding conditions of the Qatari climate.

These pipes are engineered to withstand high water pressures, making them ideal for pressurized water supply systems in residential, commercial, and industrial projects in Doha, Al Rayyan, and Al Wakrah. With a design life of 50 years without maintenance, they offer a cost-effective and long-term solution.

The flexibility of HDPE provides excellent resistance to shocks and earthquakes, ensuring the integrity of your pipeline network. Additionally, they offer superior protection against UV radiation and chemical corrosion, withstanding a wide pH range (2–12). This makes them suitable for various applications, including potable water, irrigation, and industrial fluid transport.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 21
• Pipe series (S): 10
• Material grade: PE 63
• Pressure rating: 3.9 bar
• Wall thickness: 6.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 2.83 kg/m
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available in coils: 100, 200, 300 up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Choose Almona Factory HDPE coil pipes for your next project in Qatar and benefit from high quality, durability, and peace of mind.
