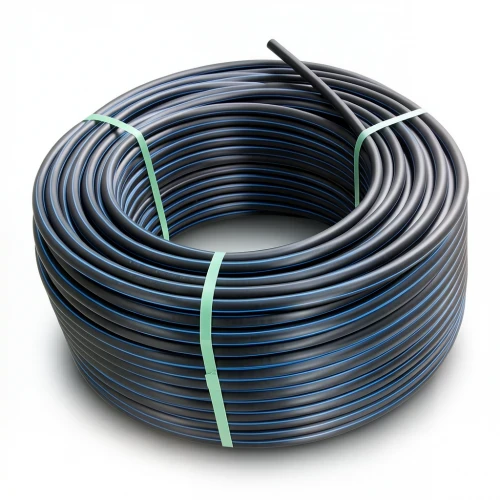

HDPE Plastic Coil Pipe PN 3.2 Bar [PE 100] Outside Diameter 90 mm SDR 41 Color Black with Blue Stripes | Almona Factory

Elevate your water infrastructure with our HDPE coil pipes from Al Mona Factory, engineered to meet the rigorous demands of Qatar's construction and industrial sectors. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE100) to deliver exceptional strength and reliability.

Designed for efficient liquid transportation, these pipes withstand high water pressure, making them perfect for municipal water networks, irrigation systems, and industrial applications throughout Doha, Al Rayyan, and Al Wakrah. With a service life exceeding 50 years and minimal maintenance requirements, they offer a cost-effective solution for long-term projects.

Their superior resistance to ultraviolet rays ensures durability under Qatar's intense sun, while their flexibility provides excellent earthquake resistance—a crucial feature for resilient infrastructure. Additionally, they resist chemical corrosion across a wide pH range (2-12), ensuring safe conveyance of various fluids.

Key Specifications:

• Outside Diameter: 90 mm
• Standard Dimension Ratio (SDR): 41
• Pipe Series (S): 20
• Material Grade: PE 100
• Pressure Rating: 3.2 bar
• Wall Thickness: 2.2 mm
• Minimum Required Strength (MRS): 10 MPa
• Material Weight: 0.647 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for potable water supply, sewage, and drainage systems, these pipes meet international quality standards and are suitable for both above-ground and underground installation. Choose Al Mona Factory for reliable, high-performance piping solutions across Qatar.
