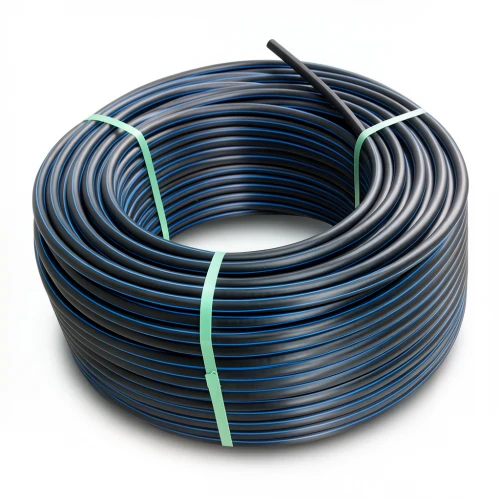

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] OD 32 mm SDR 9 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is a reliable solution for water transportation and supply networks across Qatar. Made from high-density polyethylene (PE 100), it delivers exceptional strength and long-lasting performance, even under demanding conditions.

Key Features

• Rated pressure: 20 bar (PN 20)
• Outside diameter: 32 mm
• Standard dimension ratio: SDR 9 (pipe series S 4)
• Wall thickness: 3.6 mm
• Minimum required strength (MRS): 8 MPa
• Design safety factor: C = 1.25
• Weight: 0.331 kg/m
• Color: Black with blue stripes
• Length: available in coils of 100, 200, 300 meters, and up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Applications in Qatar

Ideal for potable water distribution, irrigation systems, and industrial fluid transfer in Doha, Al Rayyan, and Al Wakrah. The pipe's flexibility and resistance to UV radiation make it suitable for outdoor installations exposed to Qatar's intense sunlight. Its chemical resistance (pH 2–12) ensures safe handling of various fluids, while its earthquake-resistant properties add an extra layer of security for underground infrastructure.

With a maintenance-free lifespan of up to 50 years, this HDPE pipe reduces long-term operational costs and ensures reliable service for municipal, commercial, and residential projects.
