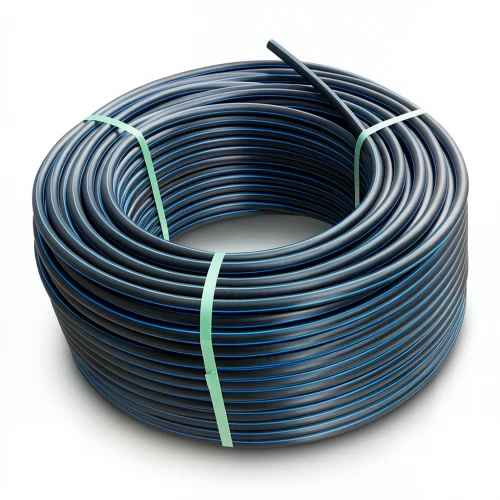

HDPE Plastic Coil Pipe PN 19.2 Bar [PE 100] Outside Diameter 140 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, manufactured to DIN 8074/8075 standards and crafted from high-density polyethylene (PE 100). These pipes are engineered for efficient and reliable water transportation, making them a top choice for infrastructure projects across Qatar, from Doha's urban networks to Al Rayyan and Al Wakrah developments.

With a robust pressure rating of 19.2 bar and an outside diameter of 140 mm, these pipes handle high-pressure water systems with ease. Their exceptional flexibility and resistance to shocks and earthquakes ensure longevity and safety, even in demanding conditions. The material's chemical resistance (pH 2-12) and UV stability make them suitable for outdoor installations under Qatar's intense sun.

Key Features

• Material: PE 100 (MRS 10 MPa)
• Pressure rating: 19.2 bar
• Outside diameter: 140 mm
• SDR 7.4, Pipe Series S 3.2
• Wall thickness: 19.2 mm
• Weight: 7.33 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: 100-meter coils (sizes 40-160 mm)
• 50-year maintenance-free service life
