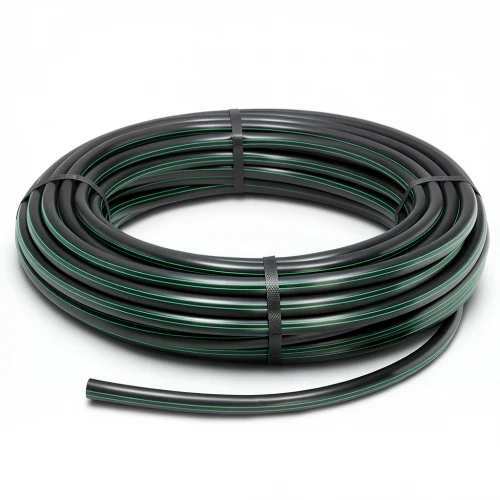

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] Outside Diameter 75 mm SDR 9 Color Black with Green Stripes | Almona Factory

Almona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered to meet the rigorous demands of water distribution networks in Qatar. Manufactured in accordance with DIN 8074/8075, these pipes offer exceptional durability, flexibility, and long-term performance, making them a preferred choice for contractors, municipalities, and industrial projects across Doha, Al Rayyan, and Al Wakrah.

These pipes are designed to withstand high water pressure, ensuring reliable operation in pressurized systems. With a minimum required strength (MRS) of 8 MPa and a design safety factor of C=1.25, they deliver consistent performance under varying conditions. The PE 80 material grade provides excellent resistance to impact and stress cracking, while the SDR 9 dimension ratio ensures optimal wall thickness for pressure handling.

Key Features

• Outside diameter: 75 mm
• Pressure rating: 16 bar (PN 16)
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Material grade: PE 80
• Wall thickness: 8.4 mm
• Minimum required strength (MRS): 8 MPa
• Material weight: 1.76 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Length: Available in coils of 100 meters (sizes 40 mm to 160 mm); for sizes 16 mm to 32 mm, coils range from 100 to 1500 meters

These HDPE pipes offer a maintenance-free service life of 50 years, significantly reducing lifecycle costs. Their resistance to UV radiation ensures they can be installed above ground without degradation, even under Qatar's intense sun. The flexibility of the pipe and its welded joints provides superior earthquake resistance, a critical consideration for infrastructure resilience. Additionally, the pipes are chemically inert and can handle a wide pH range (2 to 12), making them suitable for various industrial applications.

Ideal for potable water supply, irrigation systems, sewage and drainage networks, and industrial fluid transport, these HDPE coil pipes are a versatile solution for projects throughout Qatar. Their lightweight nature simplifies handling and installation, while the coil format reduces the need for joints, minimizing potential leak points.

Choose Almona Factory HDPE coil pipes for your next project and benefit from a product that combines quality, durability, and cost-effectiveness, ensuring efficient liquid transportation for decades to come.
