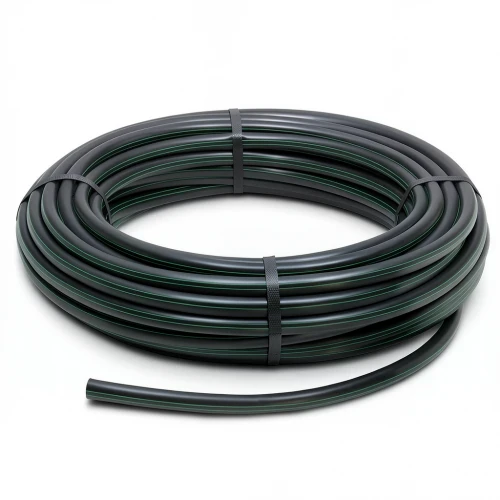

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] Outside Diameter 75 mm SDR 9 Color Black | Almona Company

Our HDPE coil pipe, manufactured by Al-Mona Company, is a high-density polyethylene (PE 80) solution designed for efficient and durable liquid transportation in Qatar's demanding environment. With an outside diameter of 75 mm and a standard dimensional ratio (SDR 9), this pipe delivers reliable performance for irrigation networks and water supply systems.

Engineered to withstand high water pressure up to 16 bar, this pipe ensures a maintenance-free service life of 50 years, making it a cost-effective choice for long-term projects. Its superior resistance to chemical corrosion (pH range 2-12) and external factors makes it ideal for Qatar's harsh climatic conditions, from the heat of Doha to the coastal humidity of Al Wakrah.

Key Specifications

• Outside Diameter: 75 mm
• Wall Thickness: 8.4 mm
• Weight: 1.76 kg/m
• Standard Dimensional Ratio: SDR 9
• Pressure Rating: 16 bar
• Pipe Series (S): 4
• Material Grade: PE 80
• Color: Black
• Minimum Required Strength (MRS): 8 MPa
• Design Stress (σs): 6.4 MPa
• Design Safety Factor: C=1.25
• Length: Coils of 100, 200, 300 meters up to 1500 meters (sizes 16 mm to 32 mm)
• Length (for 40 mm to 160 mm): 100-meter coils
• Manufactured according to: DIN 8074/8075

Ideal for agricultural irrigation, landscaping, and municipal water distribution across Qatar, this HDPE pipe offers flexibility, ease of installation, and long-lasting performance, ensuring your projects meet the highest standards.
