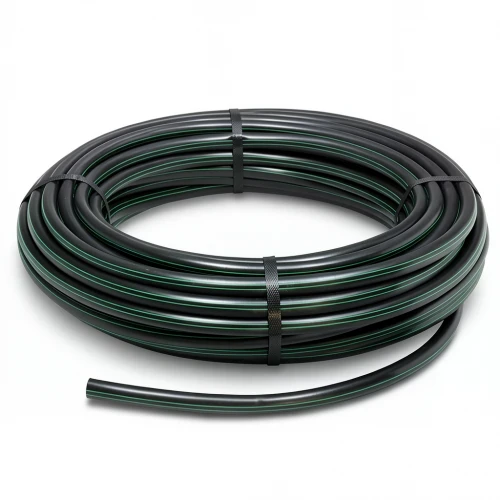

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 160 mm SDR 9 Color Black with Green Stripes | Almona Factory
(3 Product Views)
High-density polyethylene (HDPE) coil pipe with 16 bar pressure rating, 160 mm outer diameter, and black/green stripe color, produced by Almona Factory for reliable water networks in Qatar.
in stock
Product description
This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is engineered for high-performance water transportation in Qatar's demanding environment. With a pressure rating of 16 bar and an outer diameter of 160 mm, it is suitable for municipal water supply, irrigation, and industrial applications.
Key Features
- Material grade PE 80 with Minimum Required Strength (MRS) of 8 MPa
- Standard Dimension Ratio (SDR) 9 with a wall thickness of 17.9 mm
- Design safety factor C=1.25 ensures long-term reliability
- Resistant to chemicals (pH 2-12), UV exposure, and earthquakes
- 50-year maintenance-free lifespan
- Weight: 7.96 kg/m; available in coils of 100 meters (for sizes 40-160 mm) and up to 1500 meters for smaller diameters
Applications in Qatar
Ideal for water networks in Doha, Al Rayyan, and Al Wakrah, this pipe withstands high pressure and harsh sunlight, making it perfect for both underground and above-ground installations. Its flexibility simplifies handling and installation across challenging terrains.
