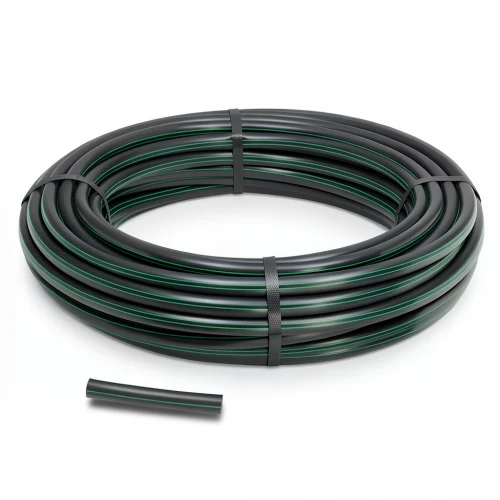

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 16 mm SDR 9 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents high-density polyethylene (HDPE) coil pipes engineered for reliable water transportation in Qatar's demanding environment. Manufactured to DIN 8074/8075, these pipes offer exceptional durability and long-term performance, making them a preferred choice for contractors and municipalities across Doha, Al Rayyan, and Al Wakrah.

These HDPE pipes are designed to withstand high water pressures, ensuring the integrity of water supply networks even under peak demand. With a minimum required strength of 8 MPa and a design safety factor of C=1.25, they provide a maintenance-free service life of up to 50 years. Their flexibility and resistance to shocks and earthquakes make them suitable for seismic zones, while their UV resistance allows for prolonged outdoor storage and installation in Qatar's sunny climate.

Additionally, these pipes exhibit superior resistance to chemical corrosion, handling a wide pH range from 2 to 12, which is essential for various industrial applications. Whether used for potable water lines, irrigation systems, or industrial fluid transfer, these HDPE coil pipes deliver consistent quality and performance.

Key Features

• Outside diameter: 16 mm
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Material grade: PE 80
• Pressure rating: 16 bar
• Wall thickness: 1.8 mm
• Minimum required strength: 8 MPa
• Weight: 0.084 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16mm–32mm); 100m coils (sizes 40mm–160mm)

Ideal for water supply networks, agricultural irrigation, and industrial applications across Qatar, these HDPE pipes meet high standards of quality and reliability, ensuring efficient fluid transport for years to come.
