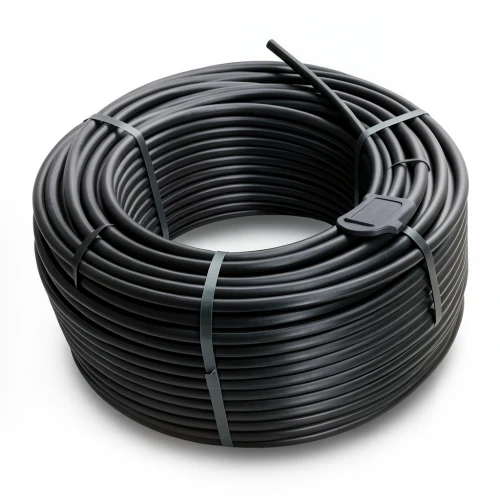

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 140 mm SDR 9 Color Black | Almona Factory

These HDPE coil pipes from Almona Factory are engineered for high-performance water distribution networks, meeting the rigorous demands of Qatar's infrastructure projects. Manufactured from premium high-density polyethylene (PE80), they deliver exceptional strength, durability, and resistance to pressure, corrosion, and high temperatures—ideal for the region's climate.

With a pressure rating of PN 16 bar and an SDR 9 standard dimension ratio, these pipes ensure safe and efficient water flow. The 140 mm outer diameter and 15.7 mm wall thickness provide robust structural integrity, while the material's flexibility allows for easy handling and installation, reducing labor and equipment costs on site.

Compliant with ISO 4427-2, these pipes are suitable for a wide range of applications in Qatar, including potable water supply, irrigation systems, and industrial fluid transport. Available in coil lengths up to 1500 meters for smaller diameters and 100-meter coils for sizes up to 160 mm, they offer versatility for projects across Doha, Al Rayyan, and Al Wakrah.

Key Features

• Material: High-density polyethylene (PE80) with MRS of 8 MPa
• Pressure rating: 16 bar (PN 16)
• Outer diameter: 140 mm, SDR 9, wall thickness 15.7 mm
• Design stress: 6.4 MPa, safety factor C=1.25
• Color: Black for UV resistance
• Coil lengths: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16-32 mm); 100 m coils for 40-160 mm
• Certified to ISO 4427-2
