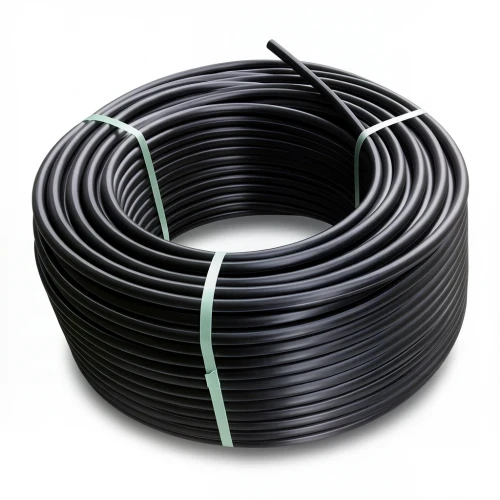

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] Outside Diameter 160 mm SDR 9 Color Black | Almona Factory

Almona Factory presents its premium HDPE coil pipe, engineered for reliable water transportation in Qatar's demanding climate. Manufactured to DIN 8074/8075, this PE 100 pipe delivers exceptional strength and longevity, making it a top choice for municipal, agricultural, and industrial projects across Doha, Al Rayyan, and Al Wakrah.

With a 15.6 bar pressure rating and an outside diameter of 160 mm, this pipe handles high-pressure water networks with ease. Its high-density polyethylene construction offers outstanding resistance to chemicals, UV exposure, and seismic activity, ensuring a maintenance-free service life of up to 50 years. The flexibility of the pipe and its welded joints provide superior earthquake resistance, while the material's tolerance to pH levels from 2 to 12 protects against corrosion from various substances.

Key Features

• Material grade: PE 100
• Outside diameter: 160 mm
• Standard dimension ratio (SDR): 9
• Pressure rating: 15.6 bar
• Wall thickness: 17.9 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 8.04 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black
• Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer coils up to 1500 meters (for sizes 16 mm to 32 mm)

Ideal for water supply lines, irrigation systems, and industrial fluid transport, this HDPE pipe is a durable, cost-effective solution that meets the highest quality standards for projects throughout Qatar.
