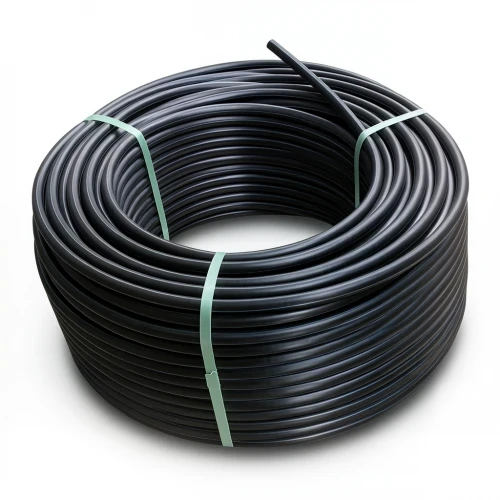

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] OD 125 mm SDR 11 Color Black | Almona Factory
(9 Product Views)
High-density polyethylene (HDPE) pipe coils from Al-Mona Factory, rated PN 12.5 bar with a 125 mm outer diameter, ideal for water supply and sewage networks across Qatar.
in stock
Product description
Al-Mona Factory presents premium HDPE pipe coils, engineered for reliable performance in Qatar's demanding water infrastructure projects. These pipes combine lightweight construction with exceptional durability, making them the preferred choice for contractors and municipalities across Doha, Al Rayyan, and Al Wakrah.
Key Features
- Material: High-density polyethylene (PE 80) for superior strength and longevity
- Pressure rating: 12.5 bar (PN 12.5)
- Outer diameter: 125 mm with SDR 11 standard dimension ratio
- Wall thickness: 11.4 mm for robust performance
- Minimum Required Strength (MRS): 8 MPa
- Design stress: 6.4 MPa with safety factor C=1.25
- Color: Black with UV resistance for outdoor installations
- Compliant with ISO 4427-2 standards
Applications in Qatar
Ideal for potable water supply networks, sewage systems, and irrigation projects across the country. The corrosion-resistant nature of HDPE ensures long service life even in Qatar's saline soil and harsh climatic conditions.
Available Lengths
Coils are available in lengths of 100, 200, and 300 meters, with options up to 1500 meters for smaller diameters (16-32 mm). For sizes 40-160 mm, standard 100-meter coils are provided.
