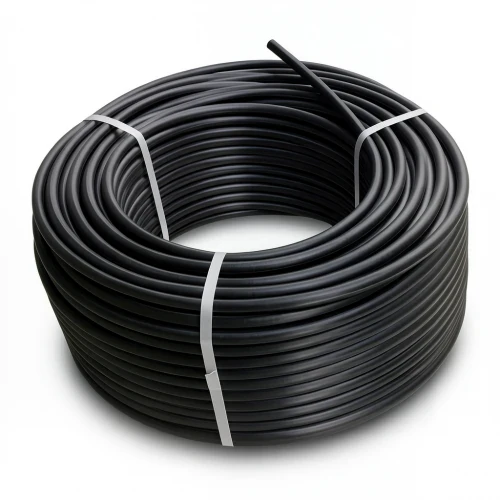

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] Outside Diameter 90 mm SDR 11 Color Black | Almona Factory

Almona Factory presents HDPE coil pipes engineered for high-performance water transportation in demanding environments, including Qatar's infrastructure projects. Manufactured to DIN 8074/8075 standards, these pipes combine exceptional durability with long-term reliability, making them a preferred choice for potable water networks, irrigation systems, and industrial supply lines across Doha, Al Rayyan, and Al Wakrah.

Made from high-density polyethylene (PE 100), this pipe offers superior resistance to high water pressure, ensuring safe operation in networks subject to intense conditions. With a design life of 50 years requiring minimal maintenance, it delivers cost-effective performance over its lifespan. The pipe's flexibility and high joint integrity provide excellent resistance to seismic activity—a critical advantage in regions with geological activity—while its UV resistance ensures dependable outdoor installation under Qatar's intense sun.

Additionally, the HDPE material withstands chemical corrosion across a pH range of 2 to 12, making it suitable for various fluids and industrial applications. Available in coil lengths from 100 to 1500 meters (for sizes 16–32 mm) and 100-meter coils for sizes 40–160 mm, this pipe offers versatility for projects of all scales.

Key Specifications

• Outside diameter: 90 mm
• Standard Dimension Ratio (SDR): 11
• Pipe Series (S): 5
• Material grade: PE 100
• Pressure rating: 12.5 bar
• Wall thickness: 8.2 mm
• Minimum Required Strength (MRS): 10 MPa
• Material weight: 2.14 kg/m
• Design safety factor: C = 1.6
• Design stress (σs): 6.25 MPa
• Color: Black
• Length: Coils (100 m, 200 m, 300 m up to 1500 m) for sizes 16–32 mm; 100 m coils for sizes 40–160 mm

Ideal for water supply networks, sewage systems, and agricultural irrigation in Qatar, these HDPE pipes meet the highest quality standards, ensuring reliable performance in both urban and remote installations.
