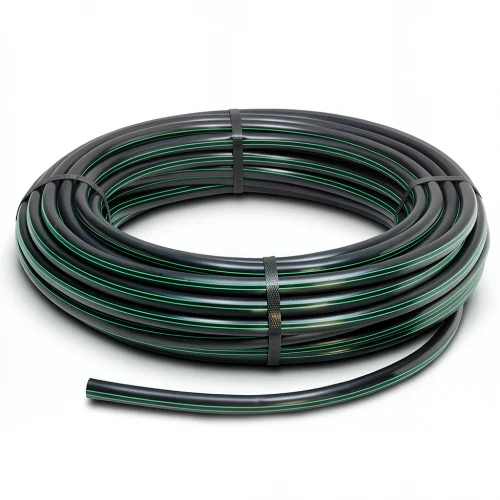

HDPE Plastic Coil Pipe PN 10 Bar [PE 80] OD 40 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a premium solution for water transportation networks across Qatar. Manufactured to DIN 8074/8075 standards, this pipe is crafted from high-density polyethylene (PE80) to deliver exceptional performance and longevity.

Designed to withstand high water pressures, this pipe is perfect for municipal water supply systems, irrigation projects, and industrial applications in Doha, Al Rayyan, and Al Wakrah. With a 50-year maintenance-free lifespan, it ensures reliable service without frequent upkeep, saving time and resources.

The pipe offers superior resistance to UV radiation, making it ideal for Qatar's harsh sunny climate, and its flexibility provides excellent earthquake resistance, crucial for seismic safety. Additionally, it resists chemical corrosion, handling a wide pH range from 2 to 12, ensuring compatibility with various fluids.

Key Specifications

• Outside Diameter: 40 mm
• Standard Dimension Ratio (SDR): 13.6
• Pipe Series (S): 6.3
• Material Grade: PE 80
• Pressure Rating: 10 bar
• Wall Thickness: 3 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 0.356 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes
• Length: Available in coils of 100 meters for sizes 40 mm to 160 mm

Whether for new installations or upgrades, this HDPE coil pipe offers a cost-effective, durable, and easy-to-install solution for Qatar's growing infrastructure needs.
