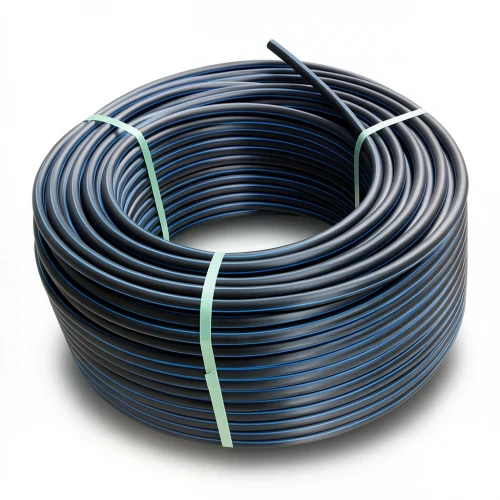

HDPE Plastic Coil Pipe PN 10 Bar [PE 100] Outside Diameter 50 mm SDR 17 Color Black with Blue Stripes | Almona Company
(29 Product Views)
Product description
Reliable Water Transport for Qatari Infrastructure
This HDPE coil pipe from Almona Company is engineered for efficient and durable water transportation networks, meeting the demands of Qatar's growing construction and municipal projects. Its high-density polyethylene (PE100) construction provides exceptional strength and longevity, ensuring a maintenance-free service life of up to 50 years.
Key Features
- Outside diameter: 50 mm
- Wall thickness: 3.0 mm
- Pressure rating: 10 bar (PN 10)
- Standard dimension ratio: SDR 17
- Pipe series (S): 8
- Material grade: PE100 with MRS of 10 MPa
- Design stress: 8 MPa, safety factor C=1.25
- Weight: 0.458 kg/m
- Color: black with blue stripes
- Available in 100-meter coils (for sizes 40-160 mm)
- Manufactured per DIN 8074/8075
Applications in Qatar
Ideal for potable water supply lines, irrigation systems, and industrial fluid transfer in Doha, Al Rayyan, and Al Wakrah. The pipe's flexibility allows easy installation around obstacles and in trenchless applications, while its resistance to corrosion and abrasion suits Qatar's harsh climate and sandy soils. With a high degree of flexibility, it withstands shocks and ground movement, ensuring reliable performance in demanding conditions.
