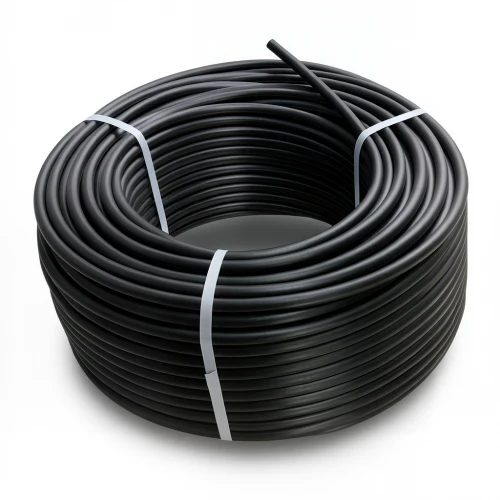

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 75 mm SDR 13.6 Color Black | Almona Factory

Al Mona Factory presents high-density polyethylene (HDPE) coil pipes, engineered to meet the rigorous demands of water transportation networks across Qatar. Manufactured in compliance with DIN 8074/8075, these pipes deliver outstanding durability and performance for both potable water and industrial applications.

With a nominal pressure rating of 9.9 bar and a PE100 material grade, these pipes are built to handle high-pressure conditions typical of Qatar's water infrastructure. The 75 mm outer diameter and SDR 13.6 ratio ensure a robust wall thickness of 5.6 mm, providing long-term reliability and a maintenance-free lifespan of up to 50 years.

Key Features

• Material: High-density polyethylene (PE100) with MRS 10 MPa
• Pressure rating: 9.9 bar (nominal)
• Outer diameter: 75 mm; SDR 13.6; wall thickness 5.6 mm
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 1.25 kg/m
• Color: Black with UV resistance for prolonged outdoor exposure
• Available in coil lengths of 100, 200, and 300 meters (up to 1500 m for smaller diameters)

Applications in Qatar

Ideal for water supply networks, irrigation systems, and industrial piping in Doha, Al Rayyan, and Al Wakrah. The pipes' flexibility and resistance to seismic activity make them suitable for underground installations, while their chemical resistance (pH 2–12) ensures compatibility with a wide range of fluids.
