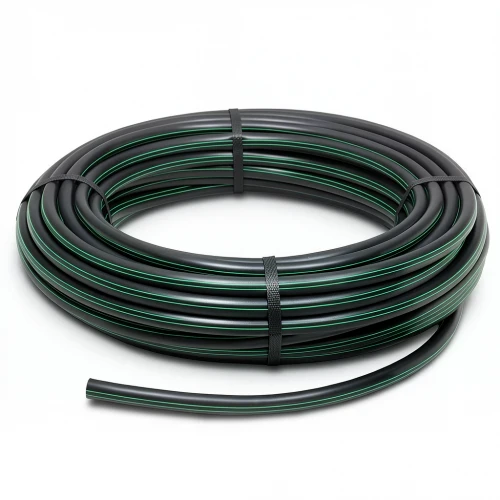

HDPE Plastic Coil Pipe Nominal Pressure 9.8 Bar [PE 63] OD 20 mm SDR 9 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for reliable water distribution in Qatar's demanding climate. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and long-lasting performance.

These pipes are designed to handle high water pressure, making them a robust choice for municipal and residential water networks across Doha, Al Rayyan, and Al Wakrah. With a service life of over 50 years and minimal maintenance, they offer a cost-effective solution for both new installations and upgrades.

Resistant to corrosion, chemicals (pH 2-12), and UV radiation, these pipes are built to withstand the harsh Qatari sun and soil conditions. Their flexibility also provides excellent seismic resistance, ensuring reliable operation even during ground movement.

Key Features

• Material: PE 63 (high-density polyethylene)
• Outside diameter: 20 mm
• Standard dimension ratio: SDR 9
• Nominal pressure: 9.8 bar
• Wall thickness: 2.3 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.133 kg/m
• Design safety factor: C=1.6
• Color: Black with green stripes
• Available in coils from 100 to 1500 meters (sizes 16-32 mm) and 100-meter coils (sizes 40-160 mm)

Ideal for potable water lines, irrigation systems, and industrial applications, these HDPE pipes meet the highest quality standards, ensuring safe and efficient fluid transport across Qatar.
