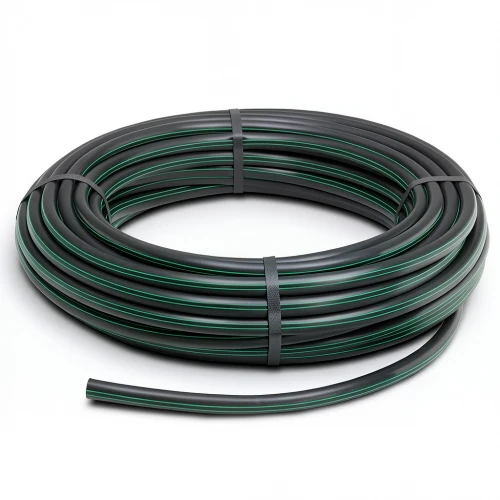

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 80] OD 50 mm SDR 22 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE coil pipes, engineered for reliable water distribution networks across Qatar. Manufactured to DIN 8074/8075 standards, these pipes combine high-density polyethylene's inherent strength with exceptional flexibility, making them a top choice for both urban and industrial applications in Doha, Al Rayyan, and Al Wakrah.

These pipes are designed to withstand high water pressures, ensuring a maintenance-free service life of up to 50 years. Their resistance to UV radiation and chemical corrosion (pH 2-12) makes them suitable for Qatar's harsh climate and diverse water conditions. The flexibility of the pipe and its welded joints provides excellent earthquake resistance, a critical feature for long-term infrastructure reliability.

Key Specifications

• Outside Diameter: 50 mm
• Standard Dimension Ratio: SDR 22
• Pipe Series (S): 10.5
• Material Grade: PE 80
• Nominal Pressure: 6 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 0.361 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes
• Length: Coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Ideal for potable water lines, irrigation systems, and industrial fluid transport, these HDPE pipes offer a cost-effective and durable solution for Qatar's growing construction and infrastructure sectors.
