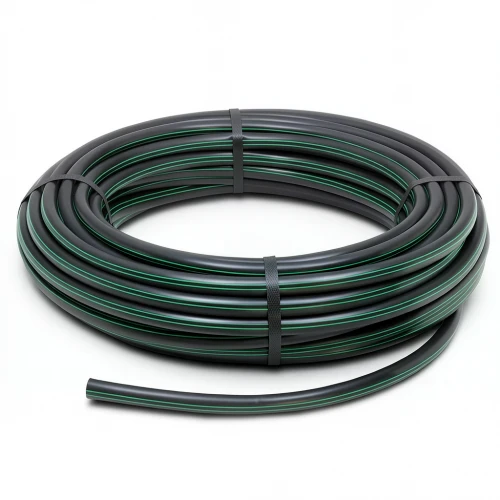

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 80] OD 90 mm SDR 41 Color Black with Green Stripes | Almona Factory

Engineered for reliable water conveyance, this HDPE coil pipe from Almona Factory meets the demands of Qatar's infrastructure and construction projects. Manufactured in accordance with DIN 8074/8075, it delivers exceptional durability and long-term performance.

Thanks to its high-density polyethylene (PE 80) construction, this pipe withstands high water pressure and offers a maintenance-free service life of up to 50 years. Its flexibility provides excellent resistance to seismic activity, while UV stability ensures reliable performance under Qatar's intense sun. Additionally, it resists chemical corrosion across a pH range of 2 to 12, making it suitable for diverse applications.

Key Features

• Outside diameter: 90 mm
• Standard dimension ratio (SDR): 41
• Pipe series (S): 20
• Material grade: PE 80
• Pressure rating: 4 bar
• Wall thickness: 2.2 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.643 kg/m
• Design safety factor: C = 1.25
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Ideal for water supply networks, irrigation systems, and industrial applications across Doha, Al Rayyan, and Al Wakrah, this HDPE pipe ensures efficient and safe fluid transport.
