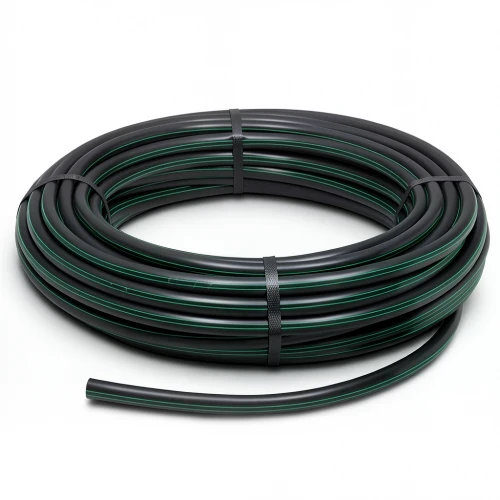

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 63] Outside Diameter 63 mm SDR 26 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al Mona Factory, a reliable solution for water transportation networks in Qatar. Manufactured to DIN 8074/8075 standards, this pipe combines high-density polyethylene (HDPE) with superior engineering to deliver exceptional performance in demanding conditions.

Designed to withstand high water pressure, this pipe is perfect for municipal and industrial water systems across Doha, Al Rayyan, and Al Wakrah. With a 50-year maintenance-free lifespan, it reduces operational costs and ensures long-term reliability. Its resistance to UV radiation and chemical corrosion (pH 2-12) makes it suitable for outdoor installations under the Qatari sun and for transporting various fluids.

The flexibility of HDPE provides excellent earthquake resistance, a key advantage for infrastructure projects in the region. Available in coil lengths up to 1500 meters (for smaller diameters) and 100-meter coils for larger sizes, this pipe simplifies installation and minimizes joints.

Key Features

• Outside diameter: 63 mm
• Standard dimension ratio: SDR 26
• Pipe series (S): 12.5
• Material grade: PE 63
• Nominal pressure: 4 bar
• Wall thickness: 2.5 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.494 kg/m
• Design safety factor: C=1.25
• Design stress (σs): 5.04 MPa
• Color: Black with green stripes
• Length: Coils (100m, 200m, 300m up to 1500m) for sizes 16-32mm; 100m coils for sizes 40-160mm
