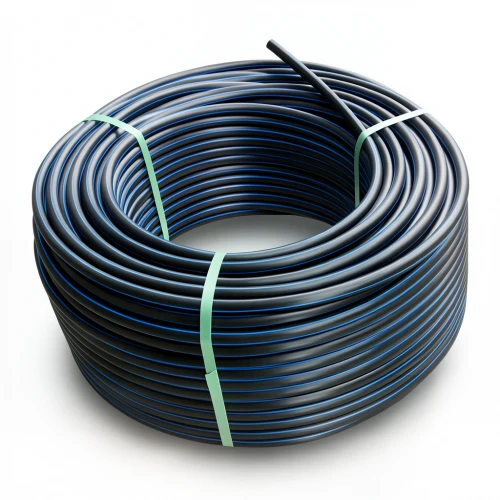

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 100] OD 160 mm SDR 33 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered for reliable water transportation networks. Manufactured to DIN 8074/8075 standards, these pipes deliver exceptional durability and performance, making them a preferred choice for infrastructure projects across Qatar, from Doha's urban developments to Al Rayyan and Al Wakrah.

Key Features

• High pressure resistance: Withstands 4 bar nominal pressure, ideal for networks under significant stress.
• Long service life: Offers a maintenance-free lifespan of 50 years, reducing long-term operational costs.
• UV and weather resistance: Handles prolonged sun exposure, perfect for Qatar's intense solar radiation.
• Earthquake resilience: Flexibility in the pipe and welded joints absorb shocks and ground movement.
• Chemical corrosion resistance: Tolerates a wide pH range (2-12) for various chemical exposures.
• Lightweight and flexible: Easy to handle and install, reducing labor and equipment needs.

Technical Specifications

• Outside diameter: 160 mm
• Standard dimension ratio: SDR 33
• Pipe series (S): 16
• Material grade: PE 100
• Pressure rating: 4 bar
• Wall thickness: 4.9 mm
• Minimum required strength (MRS): 10 MPa
• Material weight: 2.45 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black with blue stripes

Available Lengths

Coils are offered in lengths from 100 to 1500 meters for diameters 16-32 mm, and 100-meter coils for diameters 40-160 mm. This flexibility supports a wide range of project scales, from residential connections to large municipal water lines.

Choose Almona HDPE coil pipes for a robust, long-lasting solution that meets the highest quality standards in Qatar's building and industrial sectors.
