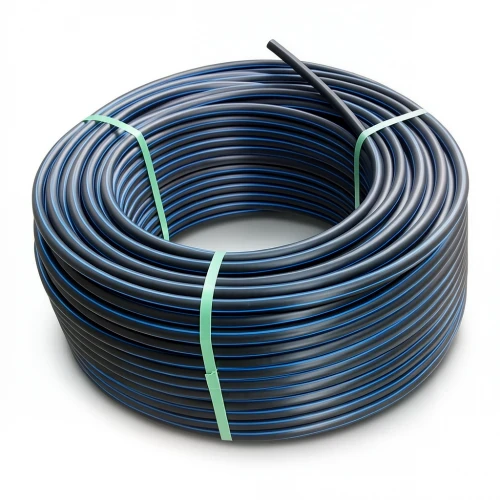

HDPE Plastic Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 75 mm SDR 41 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Al Mona Factory in compliance with DIN 8074/8075, are engineered for reliable water transportation in Qatar's demanding environment. Made from high-density polyethylene (PE 100), they deliver outstanding durability and performance for both potable water distribution and irrigation systems.

With a nominal pressure of 3.2 bar and a 75 mm outside diameter (SDR 41, S=20), these pipes are built to handle the pressures typical of municipal water networks. Their flexibility and welded joint strength provide excellent resistance to seismic activity and ground movement, a key consideration for infrastructure in the region. Additionally, they offer superior protection against UV radiation and chemical corrosion, withstanding a pH range of 2 to 12.

Thanks to their smooth interior surface and lightweight design, installation is quick and efficient, reducing project timelines across Doha, Al Rayyan, and Al Wakrah. The pipes come in coil lengths suitable for various project scales, ensuring minimal joints and lower leakage risk.

Key Specifications

• Outside diameter: 75 mm
• Standard dimension ratio (SDR): 41
• Pipe series (S): 20
• Material grade: PE 100
• Nominal pressure: 3.2 bar
• Wall thickness: 1.9 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.462 kg/m
• Design safety factor: C=1.6, σs=6.25 MPa
• Color: Black with blue stripes
• Length: Coils from 100 m to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Available in a range of sizes, these HDPE pipes are a dependable choice for water supply projects across Qatar, offering long-term, maintenance-free service life of up to 50 years.
