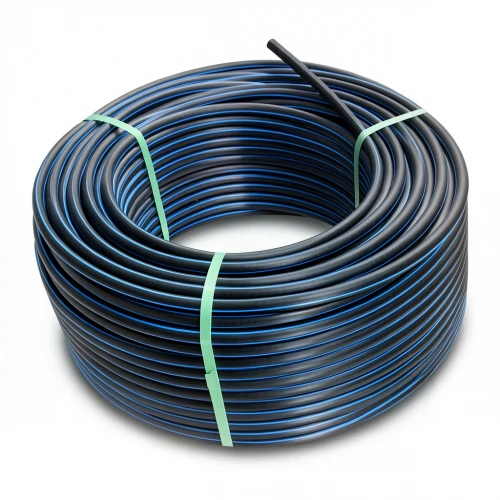

HDPE Plastic Coil Pipe Nominal Pressure 19.2 Bar [PE 100] OD 63 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered to meet the rigorous demands of water transportation networks in Qatar. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE100), delivering exceptional strength, flexibility, and longevity.

Designed for high-pressure applications, these pipes withstand the intense pressures common in Doha's water distribution systems, ensuring reliable performance. With a design life of 50 years and virtually maintenance-free operation, they offer a cost-effective solution for both municipal and private projects.

Built to endure Qatar's harsh climate, these pipes resist UV radiation and temperature extremes. Their high flexibility provides excellent seismic resistance, crucial for a region with occasional tremors. Additionally, they are impervious to chemical corrosion, handling a wide pH range (2-12) without degradation.

Key Specifications

• Outside Diameter: 63 mm
• Standard Dimension Ratio (SDR): 7.4
• Pipe Series (S): 3.2
• Material Grade: PE 100
• Pressure Rating: 19.2 bar
• Wall Thickness: 8.6 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 1.49 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for potable water supply, irrigation systems, and industrial fluid transport across Al Rayyan, Al Wakrah, and beyond, these HDPE pipes combine durability with ease of installation, ensuring long-term value for your projects.
