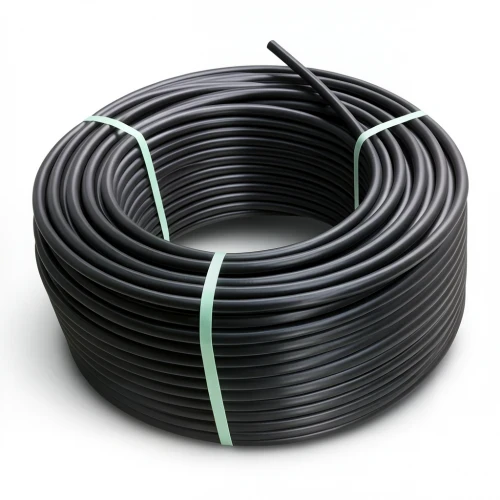

HDPE Plastic Coil Pipe Nominal Pressure 19.2 Bar [PE 100] OD 16 mm SDR 7.4 Color Black | Almona Factory

Designed for efficient water transportation, this HDPE coil pipe from Almona Factory meets DIN 8074/8075 standards and is manufactured from high-density polyethylene (PE 100). It delivers outstanding durability and performance, making it a reliable choice for pressurized water networks across Qatar, from Doha to Al Wakrah.

With a nominal pressure of 19.2 bar and a 16 mm outside diameter, this pipe withstands high water pressures commonly found in municipal and industrial systems. Its flexibility reduces the need for extensive trenching, saving time and soil usage during installation—an advantage in Qatar's compact urban areas.

The pipe offers a maintenance-free service life of 50 years, superior UV resistance for prolonged outdoor exposure, and earthquake resistance due to its flexible joints. It also resists chemical corrosion across a pH range of 2 to 12, ensuring safe transport of various fluids.

Key Specifications

• Outside diameter: 16 mm
• Standard dimension ratio (SDR): 7.4
• Pipe series (S): 3.2
• Material grade: PE 100
• Nominal pressure: 19.2 bar
• Wall thickness: 2.3 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.103 kg/m
• Design safety factor: C=1.6 (σs=6.25 MPa)
• Color: Black
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16-32 mm); 100 m coils for sizes 40-160 mm

Ideal for water supply lines, irrigation systems, and industrial applications in Qatar, this HDPE pipe combines long-term reliability with easy handling and installation.
