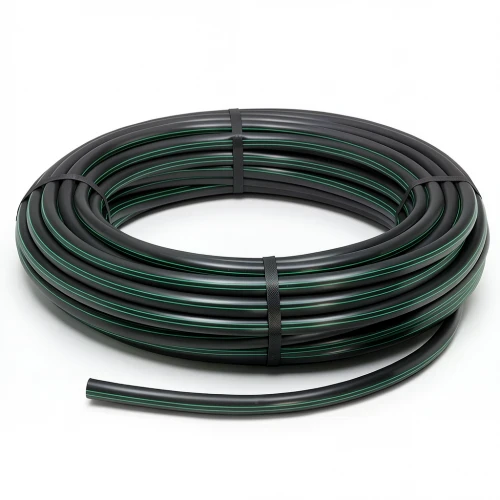

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 50 mm SDR 9 Color Black with Green Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered to meet the demands of modern water transportation in Qatar. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 80), ensuring exceptional strength and longevity. With a nominal pressure of 16 bar and an outside diameter of 50 mm, they are perfectly suited for high-pressure water networks commonly found in Doha, Al Rayyan, and Al Wakrah.

These pipes offer a maintenance-free lifespan of up to 50 years, providing superior resistance to UV radiation, chemical corrosion (pH range 2–12), and seismic activity due to their flexible welded joints. Their durability makes them a reliable choice for both potable water supply and industrial applications across Qatar's challenging climate.

Key Features

• Material: High-density polyethylene (PE 80)
• Outside diameter: 50 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Nominal pressure: 16 bar
• Wall thickness: 5.6 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.788 kg/m
• Design safety factor: C = 1.25
• Color: Black with green stripes
• Available in coils of 100 meters (sizes 40 mm to 160 mm) and up to 1500 meters (sizes 16 mm to 32 mm)

Compliant with international standards, these pipes are an ideal choice for infrastructure projects and municipal water networks throughout Qatar.
