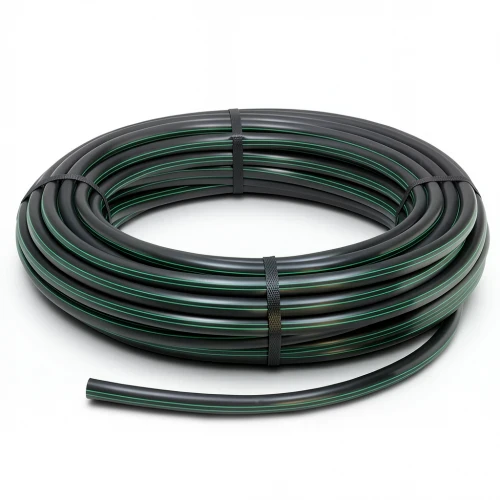

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 32 mm SDR 9 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Almona Factory, a reliable solution for water distribution networks across Qatar. Manufactured to DIN 8074/8075 standards, this pipe combines high-density polyethylene (PE 80) with a 16-bar pressure rating, ensuring consistent performance in demanding conditions.

Key Features

• Outside diameter: 32 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 80
• Nominal pressure: 16 bar
• Wall thickness: 3.6 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.327 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Durability and Performance

This HDPE pipe is engineered for a service life of 50 years with minimal maintenance, making it a cost-effective choice for long-term infrastructure projects. Its high flexibility allows it to withstand seismic activity and ground movement, which is particularly valuable in Qatar's urban development areas like Doha and Al Rayyan. The pipe resists UV exposure, chemical corrosion, and handles a wide pH range (2–12), ensuring reliable operation in various soil and water conditions.

Applications in Qatar

Ideal for potable water supply, irrigation systems, and industrial fluid transfer, this pipe meets the demands of Qatar's growing construction and utilities sectors. Whether used in residential compounds, commercial developments, or municipal networks, its robust design ensures efficient and safe water delivery.
