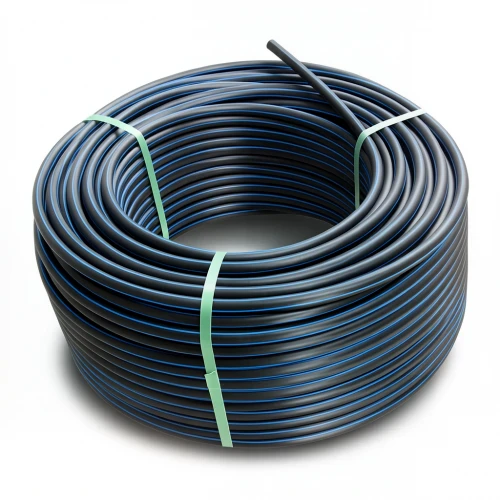

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 100] OD 160 mm SDR 11 Color Black with Blue Stripes | Almona Factory

Our HDPE plastic coil pipes, manufactured by Almona Factory to DIN 8074/8075, deliver outstanding performance for water transportation networks across Qatar. Made from high-density polyethylene, these pipes combine flexibility, strength, and longevity, making them a reliable choice for demanding applications.

With a nominal pressure of 16 bar and a 160 mm outside diameter, these pipes handle high-pressure water systems with ease. The SDR 11 ratio ensures a robust wall thickness of 14.6 mm, providing excellent resistance to internal pressure and external loads. Designed for a maintenance-free service life of 50 years, they offer long-term value for infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

Key benefits include superior flexibility that reduces the need for extensive trenching, resistance to rust, corrosion, and chemicals (pH 2-12), and the ability to withstand UV exposure and seismic activity. These features make them ideal for Qatar's harsh climate and rapid urban development.

Specifications

• Outside diameter: 160 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 100
• Nominal pressure: 16 bar
• Wall thickness: 14.6 mm
• Minimum required strength (MRS): 8 MPa
• Material weight: 6.74 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Whether for municipal water supply, irrigation, or industrial applications, these HDPE pipes ensure efficient and reliable fluid transport. Order now for your next project in Qatar.
