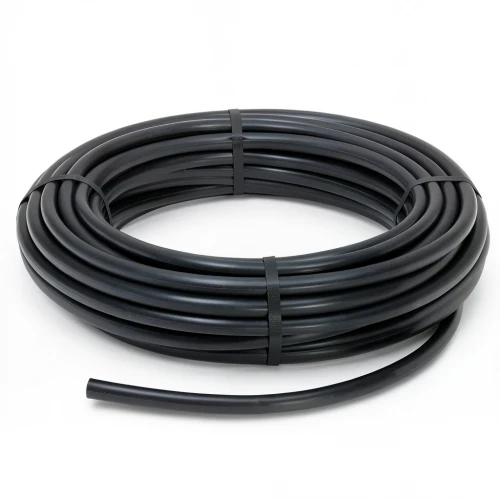

HDPE Plastic Coil Pipe Nominal Pressure 15.9 Bar [PE 63] OD 75 mm SDR 7.4 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for efficient and reliable irrigation systems across Qatar. Manufactured from high-density polyethylene (PE 63), it offers exceptional resistance to high water pressure and external factors, ensuring a long service life with minimal maintenance.

Key Specifications

• Outside diameter: 75 mm
• Wall thickness: 10.3 mm
• Weight: 2.09 kg/m
• Standard dimensional ratio (SDR): 7.4
• Nominal pressure: 15.9 bar
• Pipe series (S): 3.2
• Material grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Length: Coils of 100, 200, 300 up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm
• Manufactured to DIN 8074/8075

Applications in Qatar

Ideal for agricultural irrigation, landscaping, and water distribution networks in Doha, Al Rayyan, and Al Wakrah, where high-pressure performance and durability are essential. The pipe's flexibility and ease of installation reduce labor time and costs, making it a practical choice for both residential and commercial projects.

Benefits

• High-pressure resistance for demanding water systems
• 50-year maintenance-free lifespan
• Superior protection against corrosion and environmental stress
• Lightweight and easy to handle, reducing installation time
