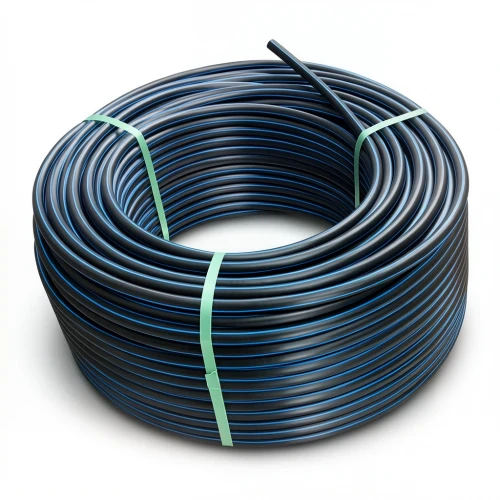

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 20 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents high-density polyethylene (HDPE) coil pipes engineered for reliable water transportation in demanding environments. Manufactured in compliance with DIN 8074/8075, these pipes combine strength, flexibility, and longevity, making them a preferred choice for infrastructure projects across Qatar.

Key Features

• Material grade PE 100 ensures high impact resistance and durability.
• Rated pressure of 15.6 bar, suitable for high-pressure water networks.
• Outside diameter of 20 mm with a standard dimension ratio (SDR) of 9.
• Wall thickness of 2.3 mm, providing robust structural integrity.
• Minimum Required Strength (MRS) of 10 MPa, with a design safety factor of 1.6.
• Black with blue stripes for easy identification.
• Available in coils from 100 to 1500 meters, with sizes from 16 mm to 32 mm (and 100-meter coils for 40 mm to 160 mm).

Applications in Qatar

Ideal for potable water distribution, irrigation systems, and industrial fluid transfer. The pipes' resistance to UV radiation and chemical corrosion (pH 2–12) makes them suitable for Qatar's harsh climate and soil conditions. With a design life of 50 years and minimal maintenance, they offer a cost-effective solution for long-term projects in Doha, Al Rayyan, and Al Wakrah.

Their flexibility and resistance to seismic activity ensure reliable performance even under ground movement, providing peace of mind for infrastructure developers.
