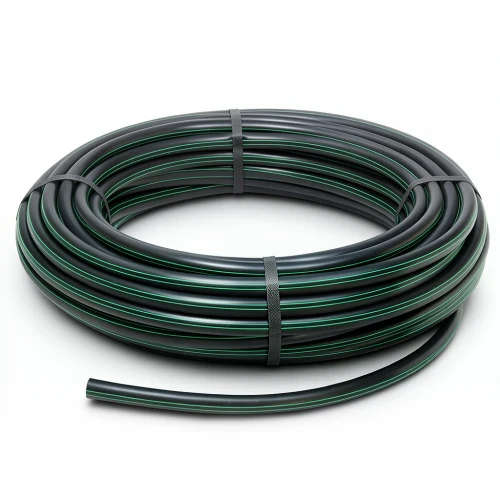

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 80] OD 63 mm SDR 11 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents HDPE Plastic Coil Pipes, engineered for robust water transportation networks across Qatar. Manufactured to DIN 8074/8075 standards, these high-density polyethylene pipes deliver exceptional durability and performance, making them a preferred choice for residential, commercial, and infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

These pipes are designed to withstand high water pressures, ensuring reliable operation in demanding conditions. With a minimum required strength of 8 MPa and a design safety factor of C=1.25, they offer long-term peace of mind. Their 50-year maintenance-free lifespan reduces operational costs, while their resistance to UV radiation and chemical corrosion (pH range 2–12) makes them suitable for Qatar's harsh climate and diverse soil conditions.

Key features include:

• Outside diameter: 63 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 80
• Nominal pressure: 12.5 bar
• Wall thickness: 5.8 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 1.05 kg/m
• Design safety factor: C=1.25
• Color: Black with green stripes
• Length: Coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm

These pipes are ideal for water supply lines, irrigation systems, and sewerage networks, offering excellent flexibility that simplifies installation and reduces the need for fittings. Their resistance to seismic activity and ground movement ensures reliable performance in Qatar's expanding urban landscape.
