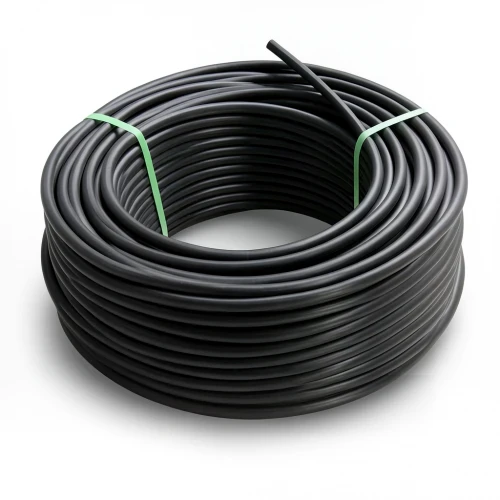

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 140 mm SDR 11 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Al-Mona Factory in accordance with DIN 8074/8075, is a superior choice for water transportation networks across Qatar. Crafted from high-density polyethylene (PE100), it delivers outstanding durability and performance, ensuring reliable service in demanding conditions.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE100
• Nominal pressure: 12.5 bar
• Wall thickness: 12.7 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 5.13 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black
• Available in coils of 100, 200, and 300 meters (up to 1500 meters for sizes 16–32 mm; 100-meter coils for sizes 40–160 mm)

Applications in Qatar

Ideal for potable water distribution, irrigation systems, and industrial supply lines in Doha, Al Rayyan, and Al Wakrah. The pipe's high pressure rating and flexibility make it perfect for Qatar's demanding infrastructure projects, while its resistance to UV and chemical corrosion ensures longevity in the harsh desert climate.

With a maintenance-free lifespan of 50 years, this HDPE pipe offers exceptional value and peace of mind. Its resistance to earthquakes and chemical corrosion (pH 2–12) further enhances its suitability for a wide range of applications.
