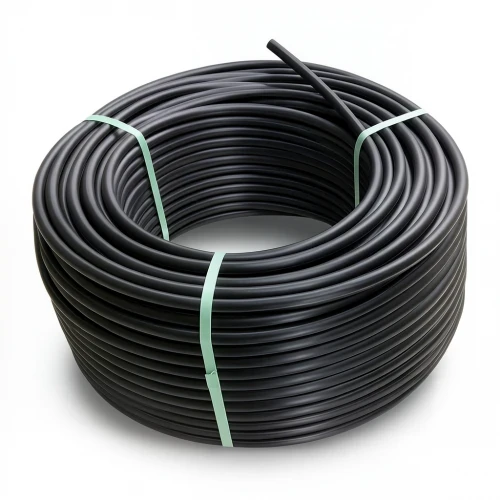

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 125 mm SDR 13.6 Color Black | Almona Company
(7 Product Views)
High-density polyethylene coil pipe rated at 12.5 bar (SDR 13.6) with a 125 mm outer diameter, ideal for water transport networks across Qatar.
in stock
Product description
This HDPE coil pipe from Al-Mona Company is engineered for reliable water distribution in Qatar's demanding environment. Manufactured from high-density polyethylene (PE100), it offers exceptional resistance to corrosion, impact, and pressure, ensuring long-term performance in both potable water and industrial applications.
Key Features
- Nominal pressure: 12.5 bar (SDR 13.6)
- Outer diameter: 125 mm; wall thickness: 9.2 mm
- Pipe series (S): 6.3; design stress: 8 MPa
- Minimum required strength (MRS): 10 MPa; safety factor: 1.25
- Manufactured to ISO 4427-2 standards
- Black color for UV protection and suitability for water networks
Applications in Qatar
Ideal for municipal water supply lines, construction site water distribution, and agricultural irrigation projects in Doha, Al Rayyan, and Al Wakrah. The coil format simplifies handling and reduces joints, speeding up installation across long distances. Available in various coil lengths to suit project requirements.
