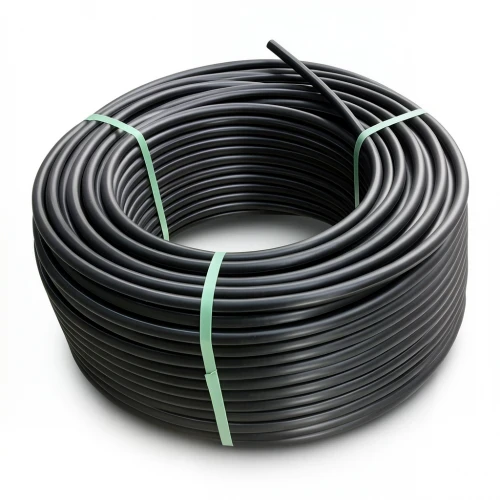

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 80] OD 50 mm SDR 13.6 Color Black | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered to meet the rigorous demands of water transportation in Qatar's challenging environment. Manufactured in accordance with ISO 4427-2, these pipes offer exceptional durability, corrosion resistance, and long-term reliability, making them a preferred choice for contractors and municipalities across Doha, Al Rayyan, and Al Wakrah.

Constructed from high-density polyethylene (PE 80), these pipes withstand high temperatures and ground pressures, ensuring consistent performance in both residential and commercial projects. The 50 mm outer diameter and SDR 13.6 rating deliver a perfect balance of strength and flexibility, while the 10 bar nominal pressure capacity suits a wide range of applications.

Key Features

• Material grade: PE 80 for superior strength and longevity
• Nominal pressure: 10 bar (designed for reliable water flow)
• Outer diameter: 50 mm with a wall thickness of 3.7 mm
• Standard dimension ratio: SDR 13.6
• Minimum required strength (MRS): 8 MPa
• Design stress: 6.4 MPa with a safety factor of C=1.25
• Black color for UV protection and durability
• Available in coils of 100 meters, with longer lengths available on request

Whether for potable water distribution, irrigation systems, or industrial pipelines, these HDPE coils offer a cost-effective and long-lasting solution. Their flexibility simplifies installation in tight spaces, reducing the need for fittings and joints. Trust Almona Factory for high-quality piping that meets Qatari standards and supports the nation's growing infrastructure.
