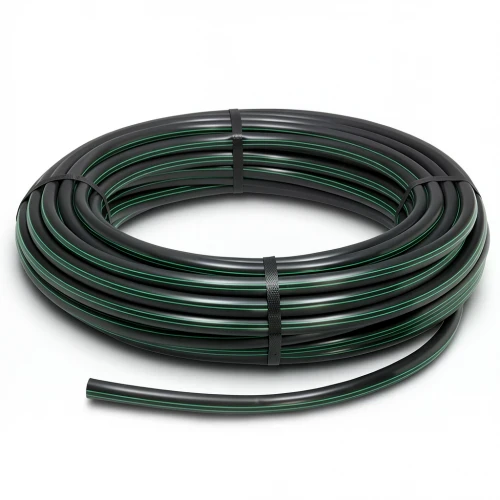

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 40 mm SDR 11 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, produced by Almona Factory in compliance with DIN 8074/8075, is a reliable solution for water distribution networks across Qatar. Its high-density polyethylene construction ensures exceptional strength and longevity, making it ideal for the demanding conditions of the region.

Engineered to withstand high water pressures, this pipe offers a maintenance-free service life of up to 50 years. It provides superior resistance to UV radiation, chemical corrosion (pH 2-12), and seismic activity, thanks to its flexibility and robust welded joints. These features are particularly valuable in Qatar's climate and infrastructure projects.

Key Features

• Outside diameter: 40 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Pressure rating: 10 bar
• Wall thickness: 3.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.430 kg/m
• Design safety factor: C=1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16-32 mm); 100 m coils for sizes 40-160 mm

Ideal for potable water lines, irrigation systems, and industrial applications in Doha, Al Rayyan, and Al Wakrah, this pipe combines performance and economy for long-term projects.
