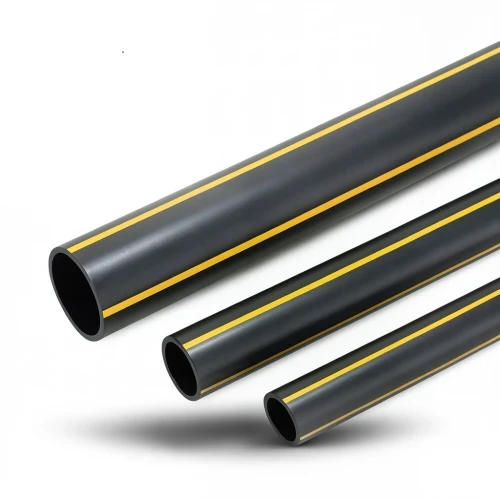

HDPE Pipe PN 4.8 Bar [PE 80] OD 200 mm Thickness 11.4 mm Color Black with Yellow Stripes | Almona Factory
(6 Product Views)
High-density polyethylene pipe from Al-Mona Factory, rated PN 4.8 bar with an outer diameter of 200 mm, built for reliable gas supply networks across Qatar.
in stock
Product description
Engineered for the demanding conditions of Qatar's gas infrastructure, this HDPE pipe from Al-Mona Factory delivers long-lasting performance. Manufactured to ISO 4437, it combines high-density polyethylene with a robust design to handle pressure and temperature variations common in the region.
Key Features
- Outer diameter: 200 mm
- Standard dimension ratio (SDR): 17.6
- Material grade: PE 80
- Pressure rating: 4.8 bar
- Wall thickness: 11.4 mm
- Weight: 6.83 kg/m
- Minimum required strength (MRS): 8 MPa
- Design stress (ฯs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (custom lengths available)
Applications in Qatar
Ideal for gas distribution networks in Doha, Al Rayyan, and Al Wakrah, this pipe offers excellent corrosion resistance and durability, ensuring safe and efficient operation in Qatar's climate.
